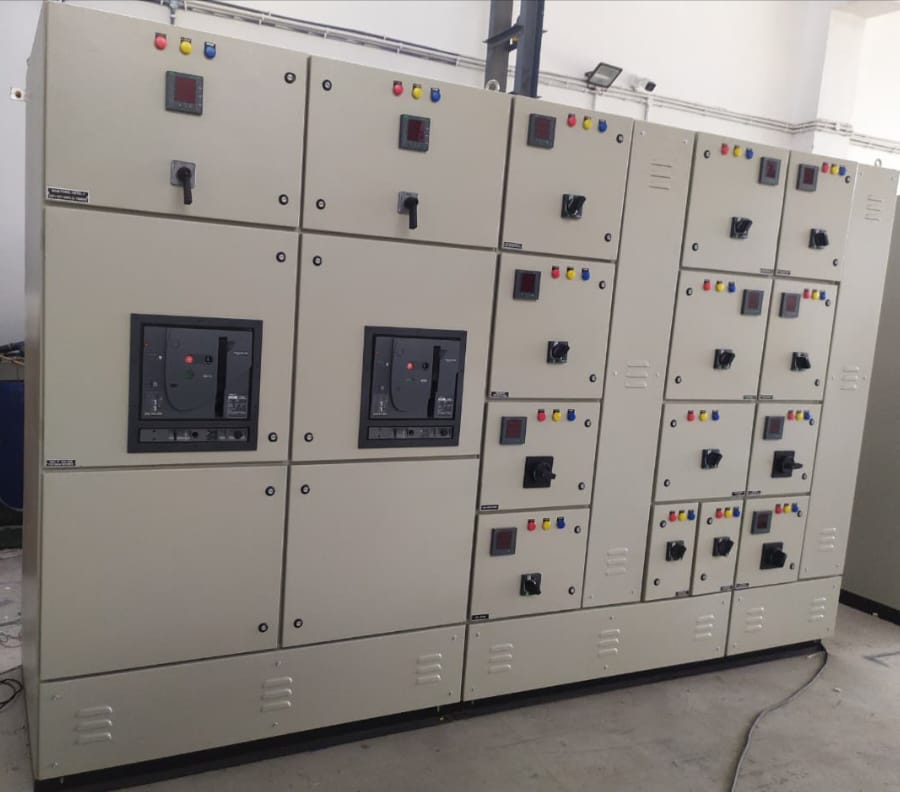

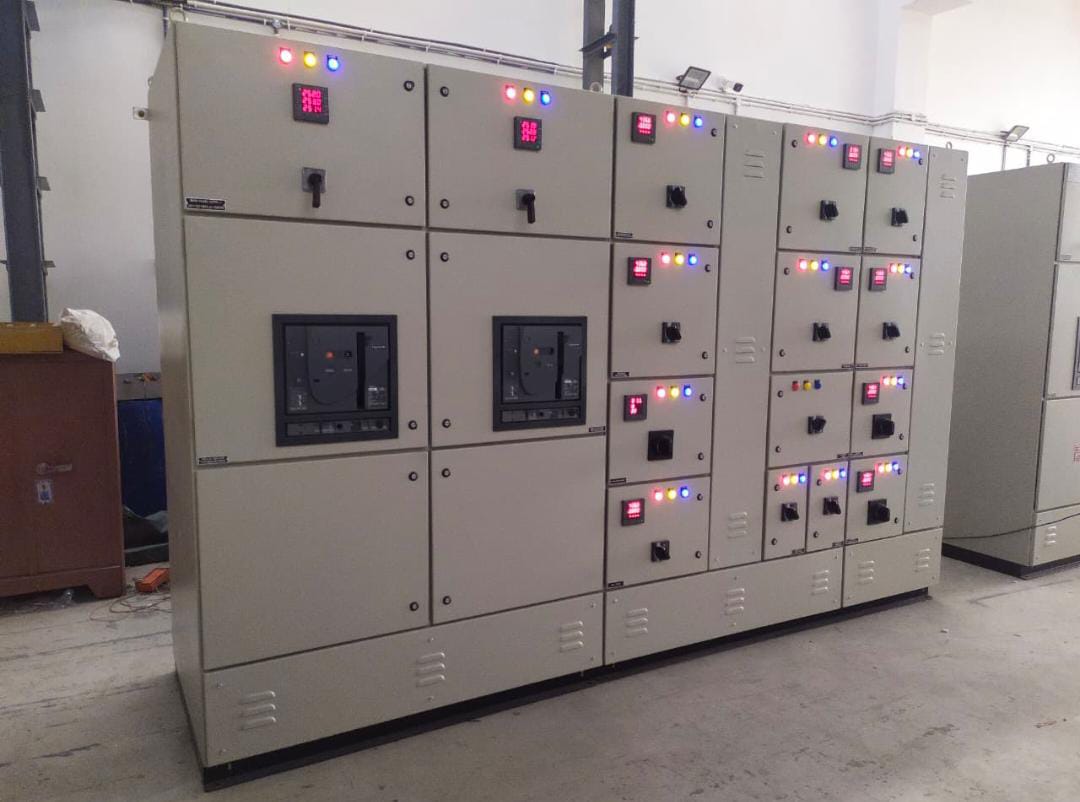

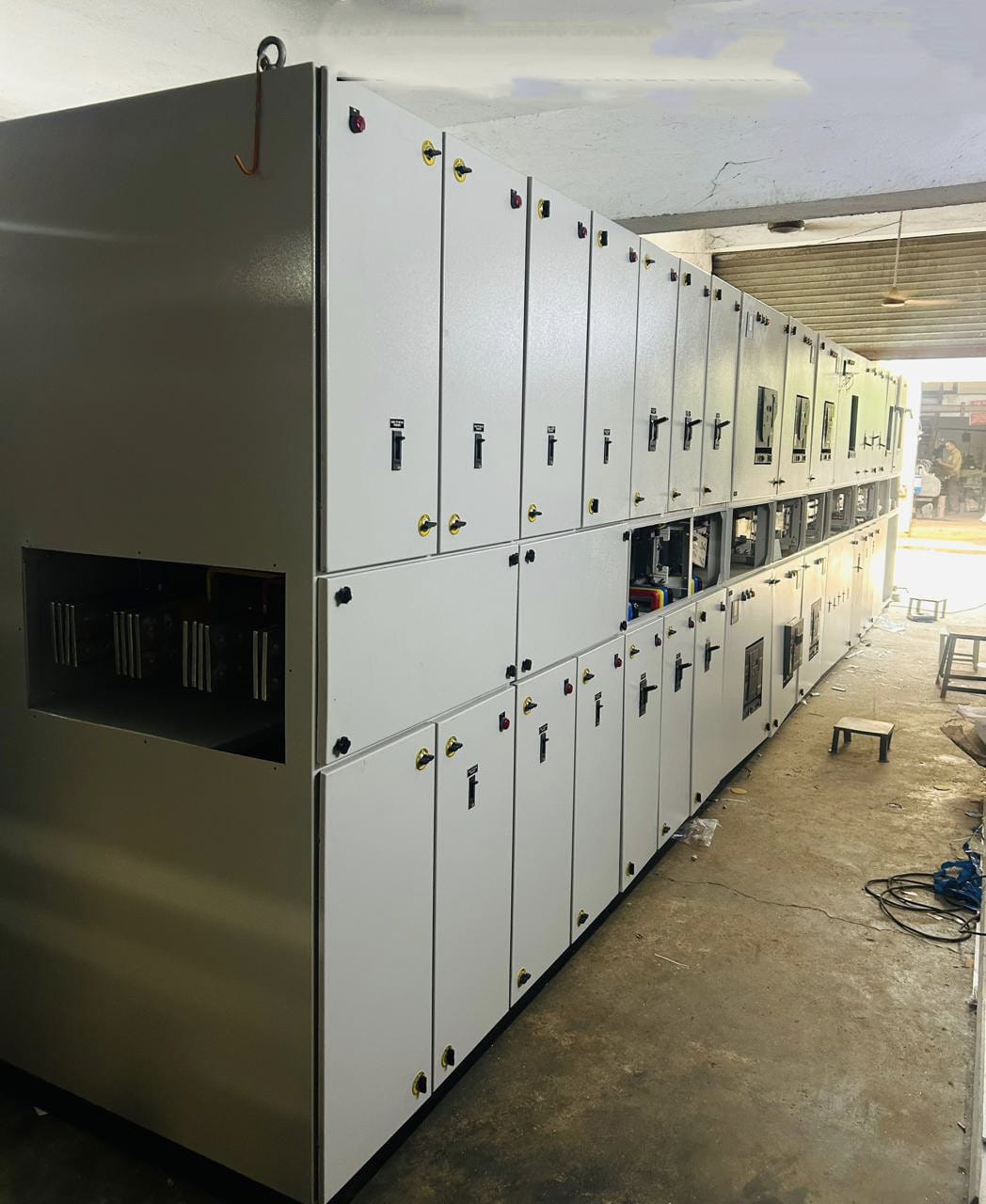

Breaker Power Distribution Panel
| Feature | Details |
|---|---|
| Sheet Material | 16 SWG CRCA Sheet |
| Pretreatment | 7-Tank Chemical Process |
| Paint | Siemens Grey (RAL 7032) Powder-Coated |
| Construction Type | Indoor, Floor Mounting, Fixed Type |
| Design | Single Front, Compartmentalized |
| Door | Single-Door Design |
| Cable Entry | Top / Bottom (Detachable, Undrilled Gland Plate) |
Main Incoming Section
Primary Source Incoming
- 2000A 4P ACB (Air Circuit Breaker)
- EF Type, Microprocessor-based trip unit
- Make: Schneider
- Provides intelligent protection, fault detection, and system reliability.
Indication & Monitoring
- R, Y, B Phase Indication Lamps
- Make: Esbee (3 Nos.)
- Multifunction Meter (MFM)
- Make: Selec
Enables real-time monitoring of electrical parameters.
DG Incoming Section
The panel includes a separate dedicated input for generator power:
- 1000A 4P ACB, EF Type, Microprocessor-based trip unit (Schneider)
- R, Y, B Indication Lamps (Esbee – 3 Nos.)
- Multifunction Meter (Selec – 1 No.)
This configuration ensures seamless generator synchronization and backup power distribution during mains failure.
Outgoing Feeder Section
Equipped with a structured arrangement of outgoing feeders for diversified load distribution:
| Rating | Type | Breaking Capacity | Make | Quantity |
|---|---|---|---|---|
| 400A 4P | MCCB | 36kA | Schneider | 6 Nos. |
| 160A 4P | MCCB | 25kA | Schneider | 4 Nos. |
| 100A 4P | MCCB | 25kA | Schneider | 1 No. |
| 32A 4P | MCB | 10kA | Schneider | 18 Nos. |
The outgoing feeders are designed for safe and efficient load segmentation, enabling easy maintenance and error-free operation.
